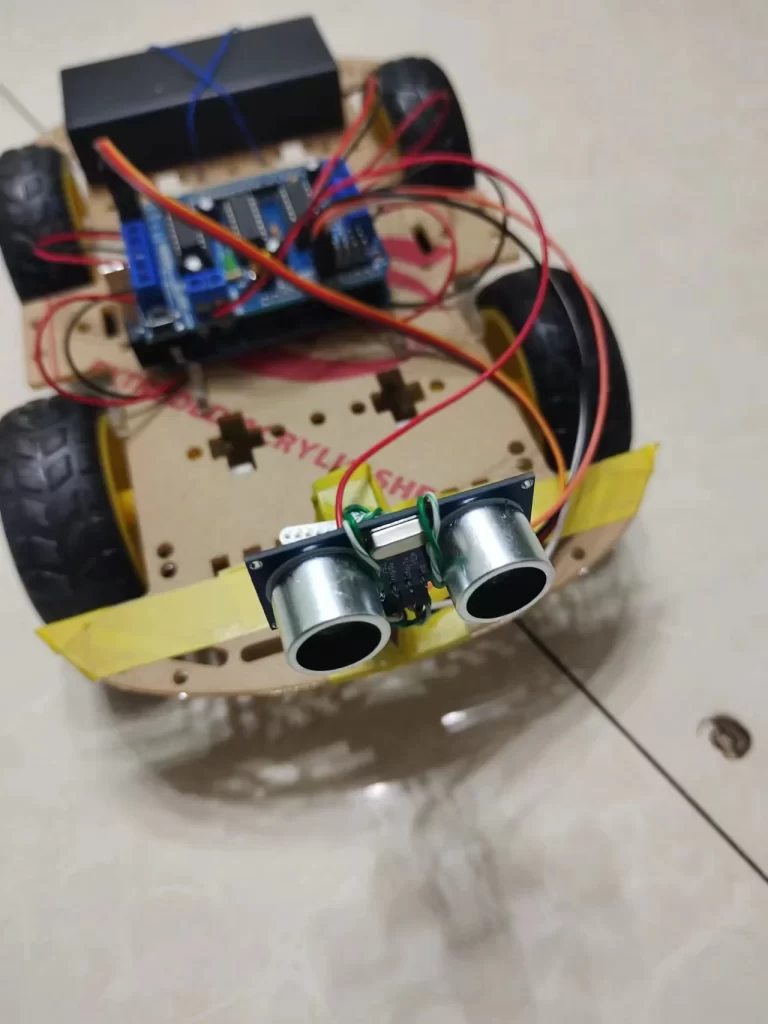

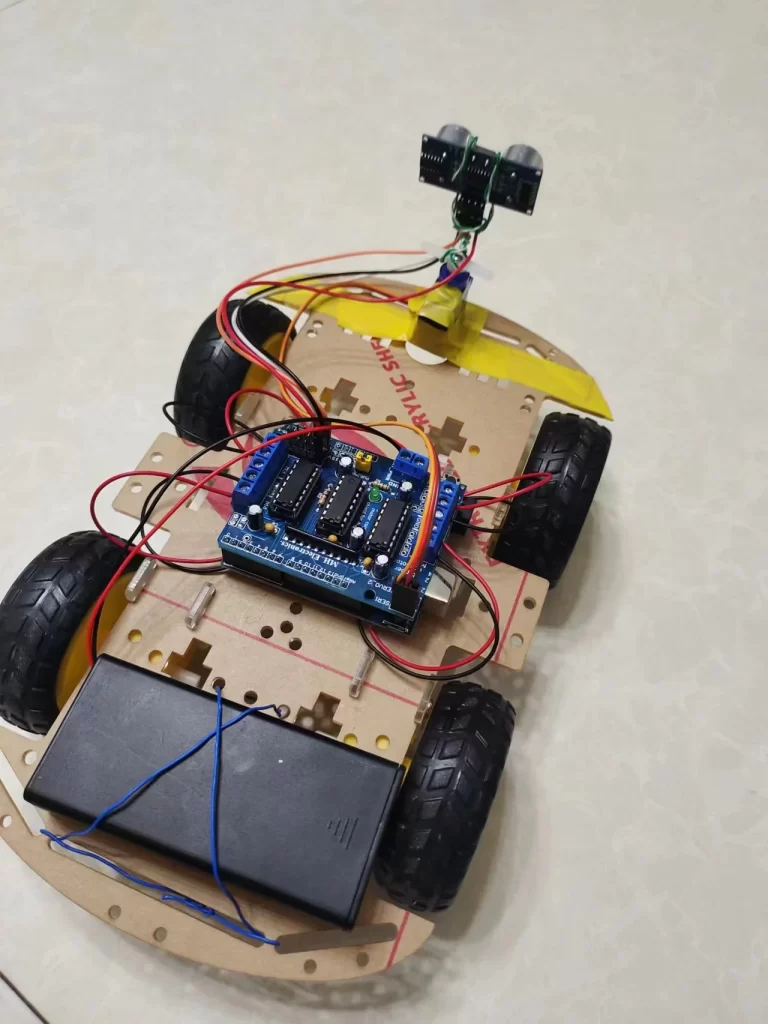

简陋的ARDUINO超声波屏障小车车

前段时间弄了一个Arduino的开发板，把随板子带的几个实验做完就放柜子里了，最近在B站上看到有人做这个小车，就是买了个底盘也马达。先是自己编程序跑了下，效果不理想，然后跟人家网上分享的代码比较了一下，差了好多呵。抄了把作业……

#include <AFMotor.h>
#include <NewPing.h>
#include <Servo.h>

#define TRIG_PIN A0
#define ECHO_PIN A1
#define MAX_DISTANCE 200
#define MAX_SPEED 120
#define MAX_SPEED_OFFSET 20
#define SPEED_STEP 1

NewPing sonar(TRIG_PIN, ECHO_PIN, MAX_DISTANCE);

AF_DCMotor motor1(1, MOTOR12_1KHZ);
AF_DCMotor motor2(2, MOTOR12_1KHZ);
AF_DCMotor motor3(3, MOTOR34_1KHZ);
AF_DCMotor motor4(4, MOTOR34_1KHZ);
Servo myservo;

boolean goesForward = false;
int distance = 100;
int speedSet = 0;

void setup() {

  Serial.begin(9600);
  myservo.attach(10);
  myservo.write(115);
  delay(2000);
  distance = readPing();
  delay(100);
  distance = readPing();
  delay(100);
  distance = readPing();
  delay(100);
  distance = readPing();
  delay(100);
}

void loop() {
  int distanceR = 0;
  int distanceL = 0;
  delay(40);

  if (distance <= 20) {
    moveStop();
    delay(100);
    moveBackward();
    delay(300);
    moveStop();
    delay(200);
    distanceR = lookRight();
    delay(200);
    distanceL = lookLeft();
    delay(200);

    Serial.print("DistanceR:");
    Serial.println(distanceR);
    Serial.print("DistanceL:");
    Serial.println(distanceL);

    if (distanceR >= distanceL) {
      turnRight();
      moveStop();
    } else {
      turnLeft();
      moveStop();
    }
  } else {
    moveForward();
  }
  distance = readPing();
}

int lookRight() {
  Serial.println("Looking Right.");

  myservo.write(50);
  delay(500);
  int distance = readPing();
  delay(100);
  myservo.write(115);

  return distance;
}

int lookLeft() {
  Serial.println("Looking Left.");

  myservo.write(170);
  delay(500);
  int distance = readPing();
  delay(100);
  myservo.write(115);
  return distance;
  delay(100);
}

int readPing() {
  delay(70);
  int cm = sonar.ping_cm();
  if (cm == 0) {
    cm = 250;
  }
  return cm;
}

void moveStop() {
  Serial.println("STOP Now.");

  motor1.run(RELEASE);
  motor2.run(RELEASE);
  motor3.run(RELEASE);
  motor4.run(RELEASE);
}

void moveForward() {
  Serial.println("Move Forward.");

  if (!goesForward) {
    goesForward = true;
    motor1.run(FORWARD);
    motor2.run(FORWARD);
    motor3.run(FORWARD);
    motor4.run(FORWARD);
    for (speedSet = 0; speedSet < MAX_SPEED; speedSet += SPEED_STEP)
    {
      motor1.setSpeed(speedSet);
      motor2.setSpeed(speedSet);
      motor3.setSpeed(speedSet);
      motor4.setSpeed(speedSet);
      delay(5);
    }
  }
}

void moveBackward() {
  Serial.println("Move Backward.");

  goesForward = false;
  motor1.run(BACKWARD);
  motor2.run(BACKWARD);
  motor3.run(BACKWARD);
  motor4.run(BACKWARD);
  for (speedSet = 0; speedSet < MAX_SPEED; speedSet += SPEED_STEP)
  {
    motor1.setSpeed(speedSet);
    motor2.setSpeed(speedSet);
    motor3.setSpeed(speedSet);
    motor4.setSpeed(speedSet);
    delay(5);
  }
}

void turnLeft() {
  Serial.println("Turn Right Now.");

  motor1.run(FORWARD);
  motor2.run(FORWARD);
  motor3.run(BACKWARD);
  motor4.run(BACKWARD);
  delay(500);

  Serial.println("Turn Right Complate.");
  motor1.run(FORWARD);
  motor2.run(FORWARD);
  motor3.run(FORWARD);
  motor4.run(FORWARD);
}

void turnRight() {
  Serial.println("Turn Left Now....");

  motor1.run(BACKWARD);
  motor2.run(BACKWARD);
  motor3.run(FORWARD);
  motor4.run(FORWARD);
  delay(500);

  Serial.println("Turn Left Complate....");
  motor1.run(FORWARD);
  motor2.run(FORWARD);
  motor3.run(FORWARD);
  motor4.run(FORWARD);
}
